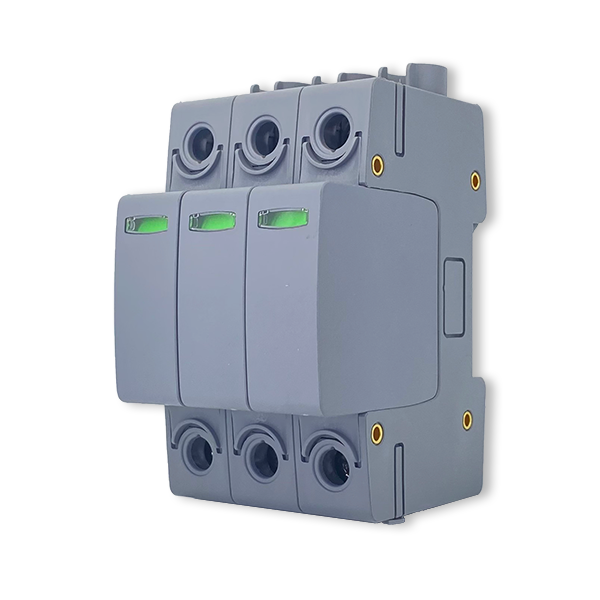

E1 Series
For PV System
Patented Tripping Mechanism
Network Configurations: 3P
Core Element：MOV 34S
Surge(T1+T2): 20/40kA(8/20us) / 2.0kA*(10/350us)
Surge(T2): 20/40kA(8/20us)
Types: 431k / 621k / 711k / 751k / 821k / 951k / 102k / 112k

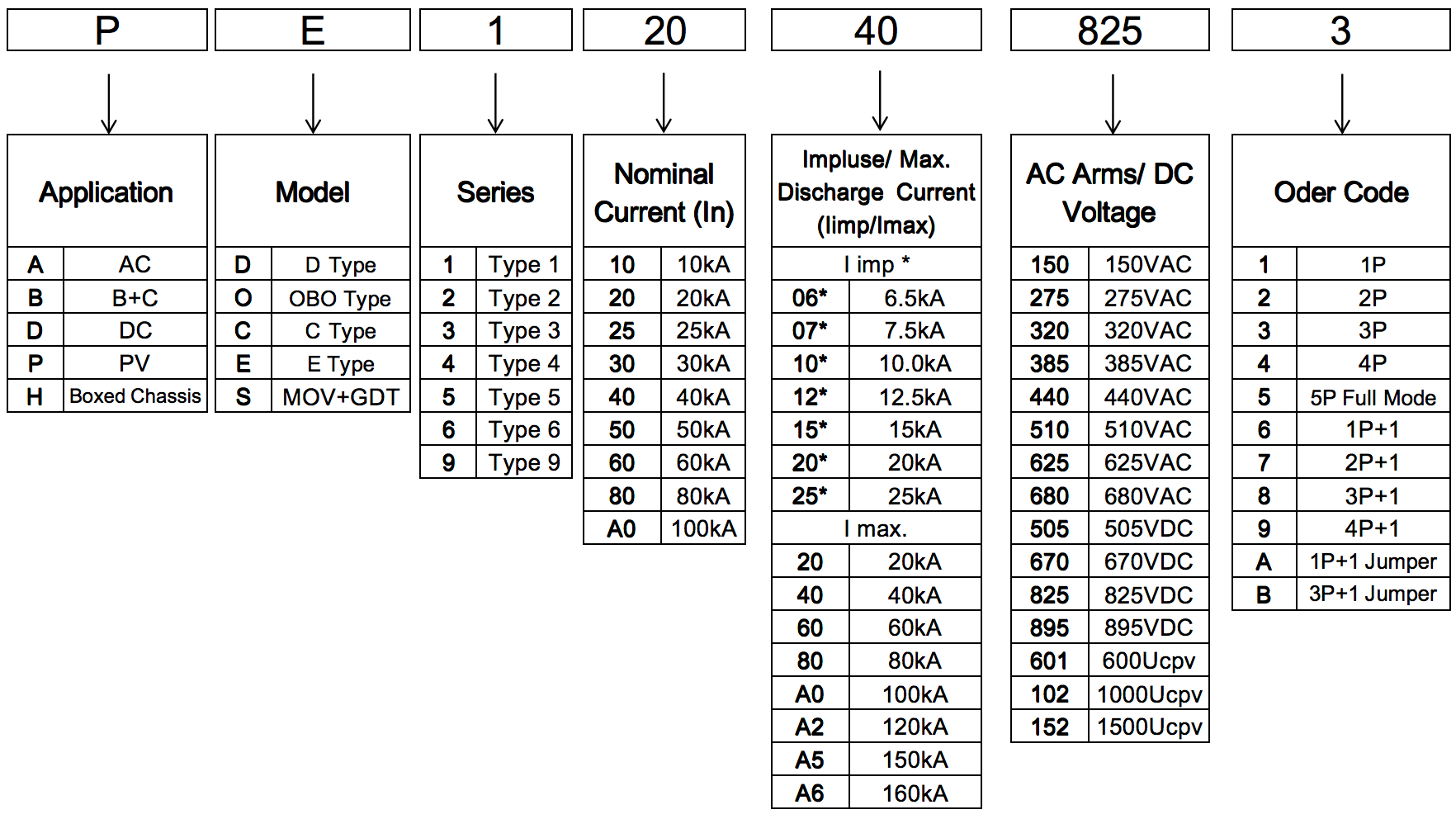

1. Part Number Code

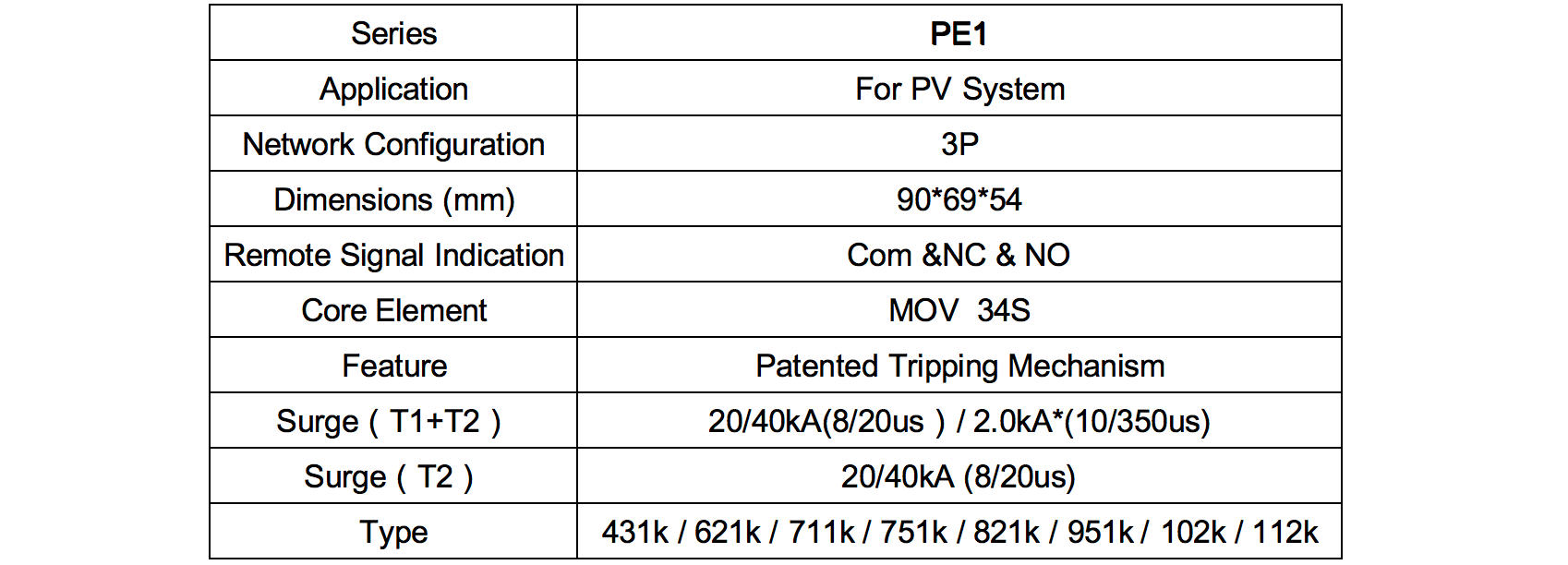

2. Specifications

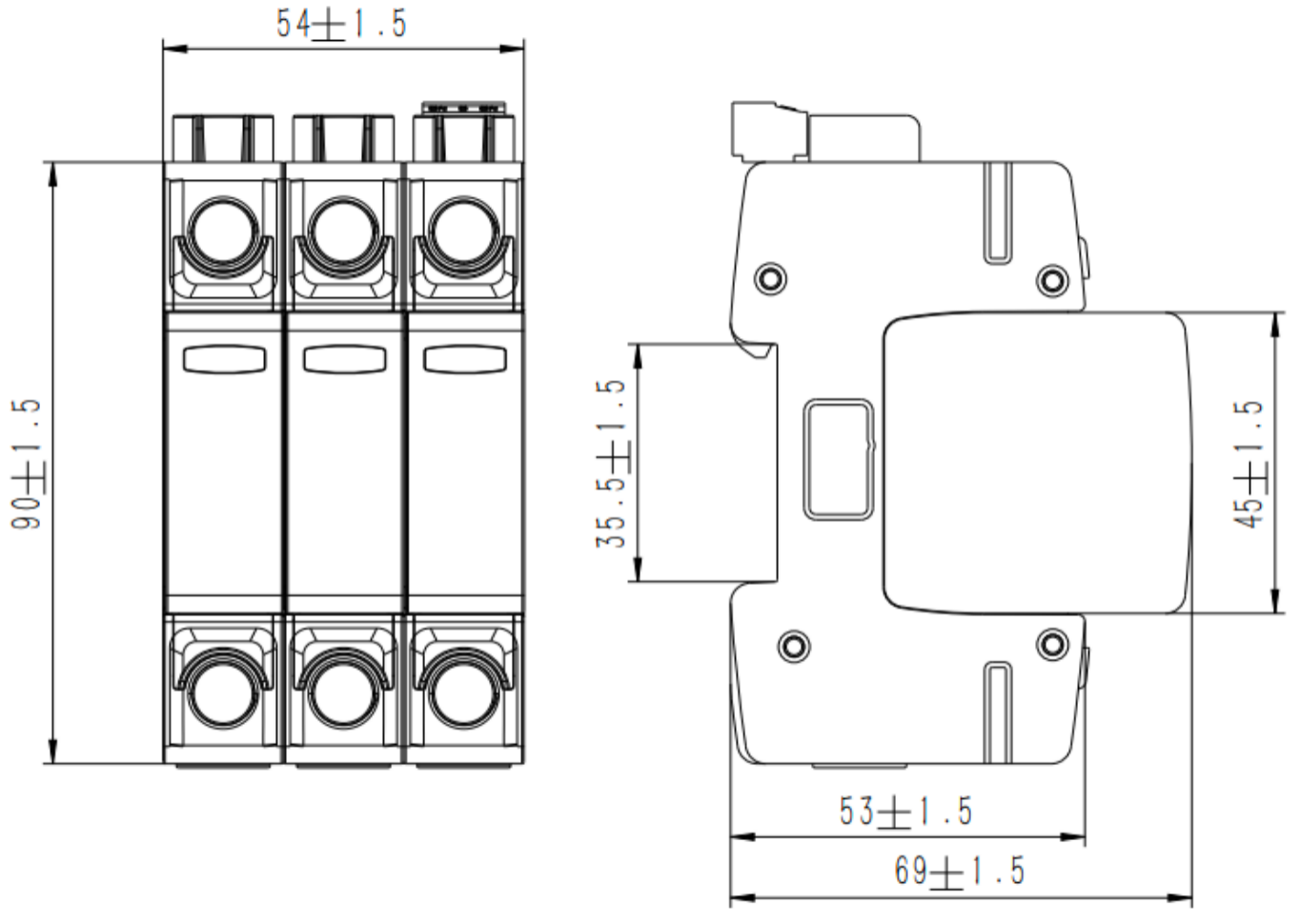

3. Dimensions

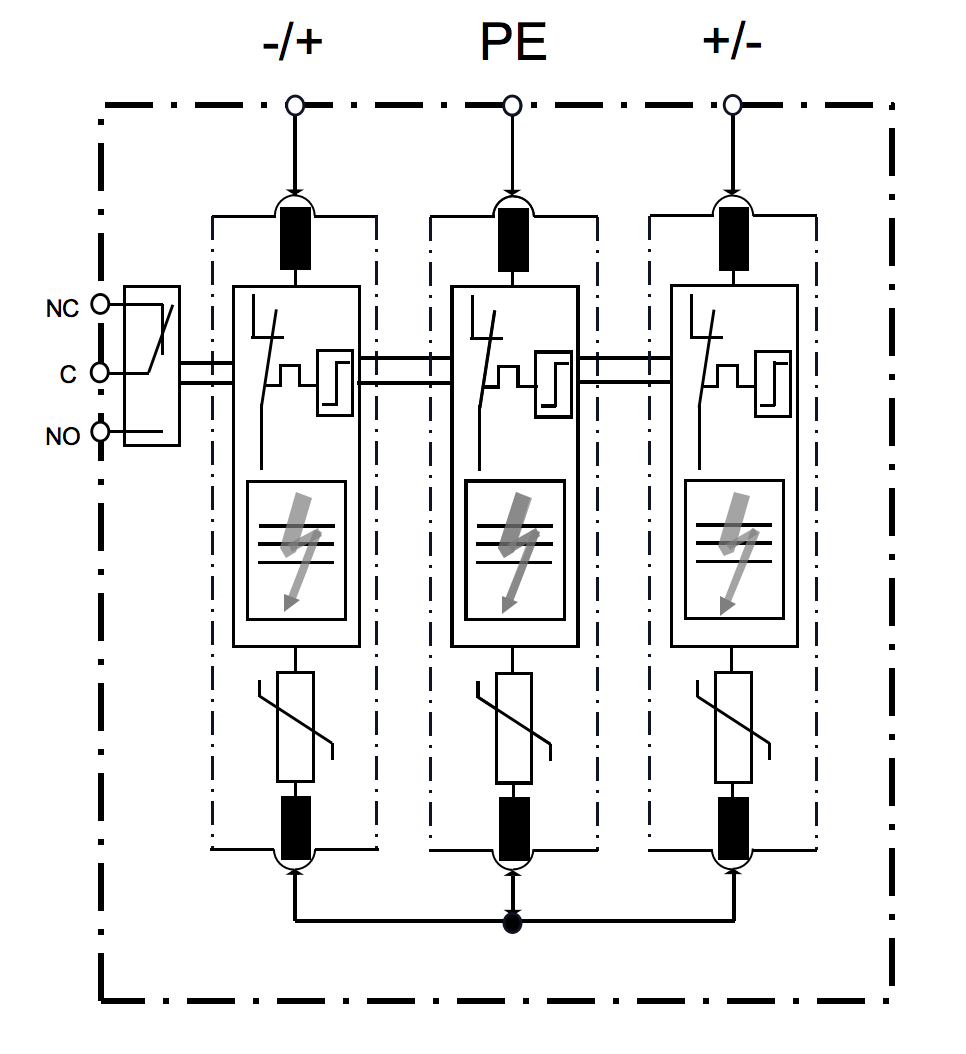

4. Schematic Diagram
